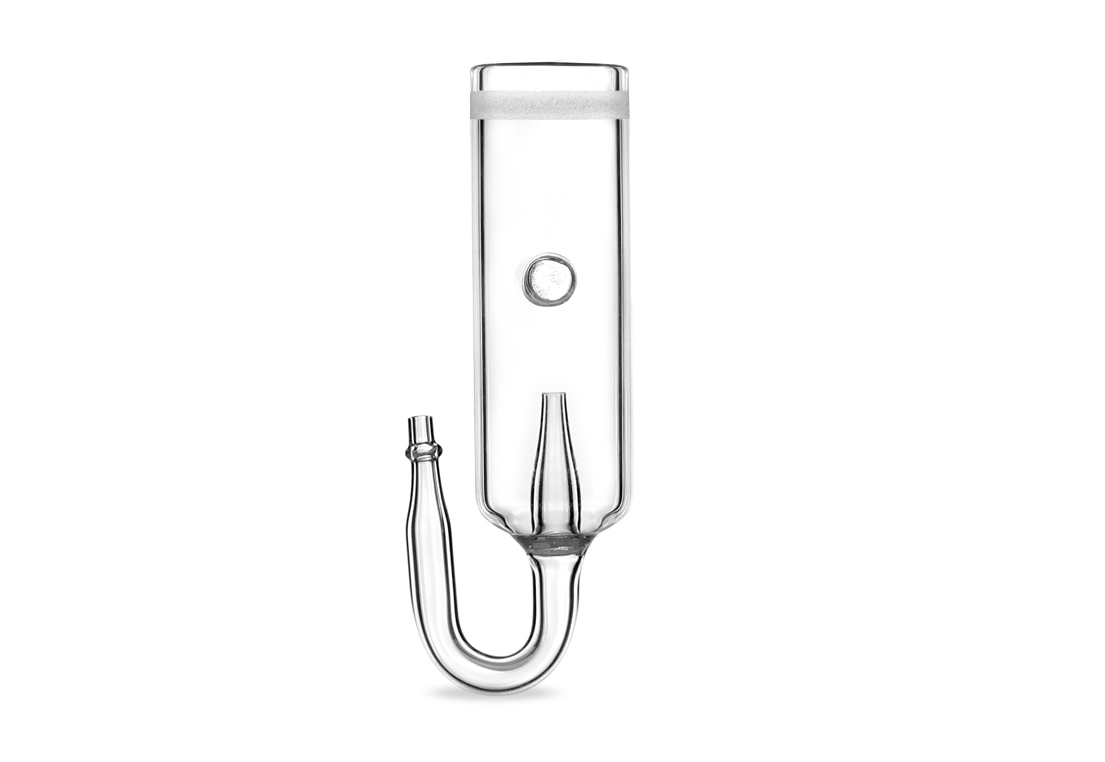

SEACHEM GLASS BUBBLE COUNTING DIFFUSER – POLLEN 17 mm Disc
Overview
The Bubble Counting Diffuser is a pollen style CO2 diffuser that connects to CO2 injection systems to easily disperse CO2 gas into the planted aquarium. The built-in bubble counter allows for easy monitoring of the rate of CO2 injection. The inclusion of a bubble counter in the diffuser makes the use of a bubble counter on the CO2 tank or in-line unnecessary. The Bubble Counting Diffuser has a 17 mm disc.
Compatible with 6 mm (1/4″) – Standard Airline Tubing. Suction cup included.
Directions
Rinse glassware with warm water. Attach suction cup and desired tubing (Compatible with 6 mm (1/4″) – Standard Airline Tubing) to the diffuser.
To attach tubing to glassware, wet the inside of the tubing with water at the attachment point and carefully slide tubing over glass. The use of other lubricants is not advisable as these usually make the tubing slide off of the glassware too easily. To avoid breakage when removing tubing, do not pull tubing off of glassware. Instead, cut tubing carefully along the attachment length to release the glassware.
Mount your diffuser using the suction cup(s). It should be positioned low in the aquarium. When removing or repositioning the diffuser, pull by the suction cup(s) rather than the glass to avoid breakage.
Install check valve (not included) inline with tubing outside of the aquarium
Once securely mounted, turn on CO2. Observe bubble count and adjust CO2 to desired flow rate.
Quick Comparison
| Settings | SEACHEM GLASS BUBBLE COUNTING DIFFUSER - POLLEN 17 mm Disc remove | SEACHEM HYDROTOTE 20 L remove | DDOA TERRA LINE remove | SEACHEM GLASS PH CHECKER 25mm remove | COVE PVC water pipe - Red 50mm remove | SEACHEM GLASS IN LINE DIFFUSER 13 mm remove |
|---|---|---|---|---|---|---|
| Name | SEACHEM GLASS BUBBLE COUNTING DIFFUSER - POLLEN 17 mm Disc remove | SEACHEM HYDROTOTE 20 L remove | DDOA TERRA LINE remove | SEACHEM GLASS PH CHECKER 25mm remove | COVE PVC water pipe - Red 50mm remove | SEACHEM GLASS IN LINE DIFFUSER 13 mm remove |
| Image |  |  |  |  |  |  |
| SKU | 000116031561 | 000116311304 | 4537934562015 | 000116031523 | 66665566 | 000116031615 |
| Rating | ||||||
| Price | ||||||
| Stock | In stock | In stock | In stock | In stock | In stock | In stock |
| Availability | In stock | In stock | In stock | In stock | In stock | In stock |
| Add to cart | ||||||
| Description |
| Terra Line is a special thread product for securing plants such as epiphytic orchids to driftwood enabling it to secure without melting and breaking in the water. Because it is synthetic fiber, it will not be melt or broken even if it’s used in watery areas. So it is possible to firmly secure plants with less rooting ability and plants that need a lot of time to take roots. | ||||
| Content | Overview
The Bubble Counting Diffuser is a pollen style CO2 diffuser that connects to CO2 injection systems to easily disperse CO2 gas into the planted aquarium. The built-in bubble counter allows for easy monitoring of the rate of CO2 injection. The inclusion of a bubble counter in the diffuser makes the use of a bubble counter on the CO2 tank or in-line unnecessary. The Bubble Counting Diffuser has a 17 mm disc.
Compatible with 6 mm (1/4") - Standard Airline Tubing. Suction cup included.
Directions
Rinse glassware with warm water. Attach suction cup and desired tubing (Compatible with 6 mm (1/4") - Standard Airline Tubing) to the diffuser.
To attach tubing to glassware, wet the inside of the tubing with water at the attachment point and carefully slide tubing over glass. The use of other lubricants is not advisable as these usually make the tubing slide off of the glassware too easily. To avoid breakage when removing tubing, do not pull tubing off of glassware. Instead, cut tubing carefully along the attachment length to release the glassware.
Mount your diffuser using the suction cup(s). It should be positioned low in the aquarium. When removing or repositioning the diffuser, pull by the suction cup(s) rather than the glass to avoid breakage.
Install check valve (not included) inline with tubing outside of the aquarium
Once securely mounted, turn on CO2. Observe bubble count and adjust CO2 to desired flow rate.
| Overview
Dealers asked for it, and Seachem delivered. HydroTote™ is the ideal space saving alternative for shops carrying current 5 gallon hard jugs that simply consume too much space in the home, office, or pet store.
The HydroTote™ is a collapsible jug that holds up to 20 L (5 US gallons) or 10 L (2.5 US gallons). It's perfect for customers that get their saltwater, RO water, or DI water at their local fish store. When not in use, it folds and compresses to take up less space. It pours easily and can withstand a drop of up to 3 meters while full.
20 L HydroTote | Overview
The pH checker is a glass pH monitor that comes with pH sensitive indicator solution. When submerged in water, this indicator solution changes color according to changes in the pH of the aquarium as a result of CO2 gas. The pH checker makes monitoring CO2 concentrations and pH level in planted aquaria easy.
Suction cup included.
Directions
pH Checker works with any size aquarium. Holding the funnel side of pH Checker upward fill the small bulb with 20 drops of indicator solution. Slowly turn the funnel side down avoiding any spillage of the solution. Insert pH Checker into aquarium funnel side down trapping air in the funnel. Attach the pH Checker in aquarium at the furthest point from any diffuser.
The color of the indicator solution will change yellow to green to blue according to the pH of the water. A more yellow color indicates lower pH / more CO2. A more blue color indicates higher pH / less CO2.
|
The 13 mm glass Inline Diffuser is a pollen style inline CO2 diffuser that is placed in the outflow line of the filter or aquarium pump to efficiently diffuse CO2gas into the aquarium. This placement of the diffuser avoids the need for a diffuser in the aquarium and significantly reduces the visibility of the CO2injection system in the aquascape. This also allows for more rapid diffusion of CO2 into the system and can allow for more consistent levels and reduce waste of CO2 or overdose of CO2
Compatible with 12 mm ID/16 mm OD hoses. Compatible with 6 mm (1/4") - Standard Airline Tubing. Suction cups included.
Rinse glassware with warm water. Cut filter hose (Compatible with 12 mm ID / 16 mm OD filter hose) to appropriate length so that inline diffuser will hang vertically next to aquarium glass when filter outflow is placed on aquarium. Attach aquarium hose, ensuring that diffuser disc faces “up” toward outflow. Attach suction cups and desired tubing (Compatible with 6 mm (1/4") - Standard Airline Tubing) to the CO2 in line of the diffuser.
Install check valve (not included) inline with 6 mm (1/4") tubing (CO2 in)
To attach tubing and hose to glassware, wet the inside of the tubing or hose with water at the attachment point and carefully slide tubing over glass. The use of other lubricants is not advisable as these usually make the tubing slide off of the glassware too easily. To avoid breakage when removing tubing or hose, do not pull tubing off of glassware. Instead, cut tubing or hose carefully along the attachment length to release the glassware.
Mount your inline diffuser using the suction cup(s). It should be positioned so that it sits vertically on the side or back of the aquarium. When removing or repositioning the diffuser, pull by the suction cup(s) rather than the glass to avoid breakage.
Once securely mounted, turn on filter. Ensure that water passes through diffuser and into aquarium without leaks or bubbles. Turn on CO2. Observe bubble count (bubble counter not included) and adjust CO2 to desired flow rate. Seachem Bubble Counter available for easy monitoring of CO2 flow.
| ||
| Weight | ||||||
| Dimensions | N/A | N/A | N/A | N/A | N/A | N/A |
| Additional information |
